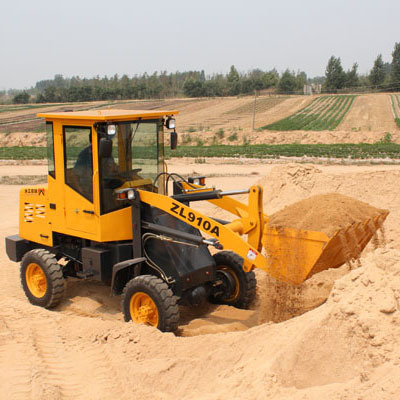

ZL910 Wheel Loader
Fully enclosed cab, bright and spacious; new cab damping system to make work more comfortable.
Key words:
ZL910 Wheel Loader
Category:
Wheel Loader
E-mail:
ZL910 Wheel Loader
Main Features
■ Fully enclosed cab, bright and spacious; new cab damping system to make work more comfortable.
■ Adopting Changchai L28M diesel, reliable, low fuel consumption, long service life.
■ Hydraulic load-sensing steering system and short body makes cornering more flexible and lightweight.
■ Working device with automatic leveling function, greatly reducing the driver's work intensity.
■ New dual seal piping, make the hydraulic system is more reliable and stable.
■ Hydraulic brake system, make the shortest braking distance.
Technical Specifications
Model |
ZL910 Wheel Loader |
Rated Load (kgs) |
1000 |
Rated Bucket Capacity (m3) |
0.3 (W1200) |
Overall Dimensions (L×W×H) (mm) |
4850×1540×2500 |
Wheel Base (mm) |
2020 |
Wheel Tread (mm) |
1320 |
Min. Turning Radius (mm) |
4200 |
Max.Gradeability (°) |
30 |
Min. Ground Clearance (mm) |
210 |
Max.Dumping Angle (°) |
45 |
Max.Dumping Height (mm) |
2950 |
Min. Dumping Reach (mm) |
770 |
Tyre and Pressure |
7.50-16;210KPa |
Max.Speed (km/h.) |
22 |
Operating Weight (kgs) |
2350 |
Engine |
|
Model |
ChangchaiL28M |
Rated Power (kw) |
20 |
Rated Speed (r/min.) |
2200 |
Cooling Type |
Evaporating |
Transmission |
|
Gearbox |
4 forward shift,2 reverse shift |
Brake |
Hydraulic power assisted |
